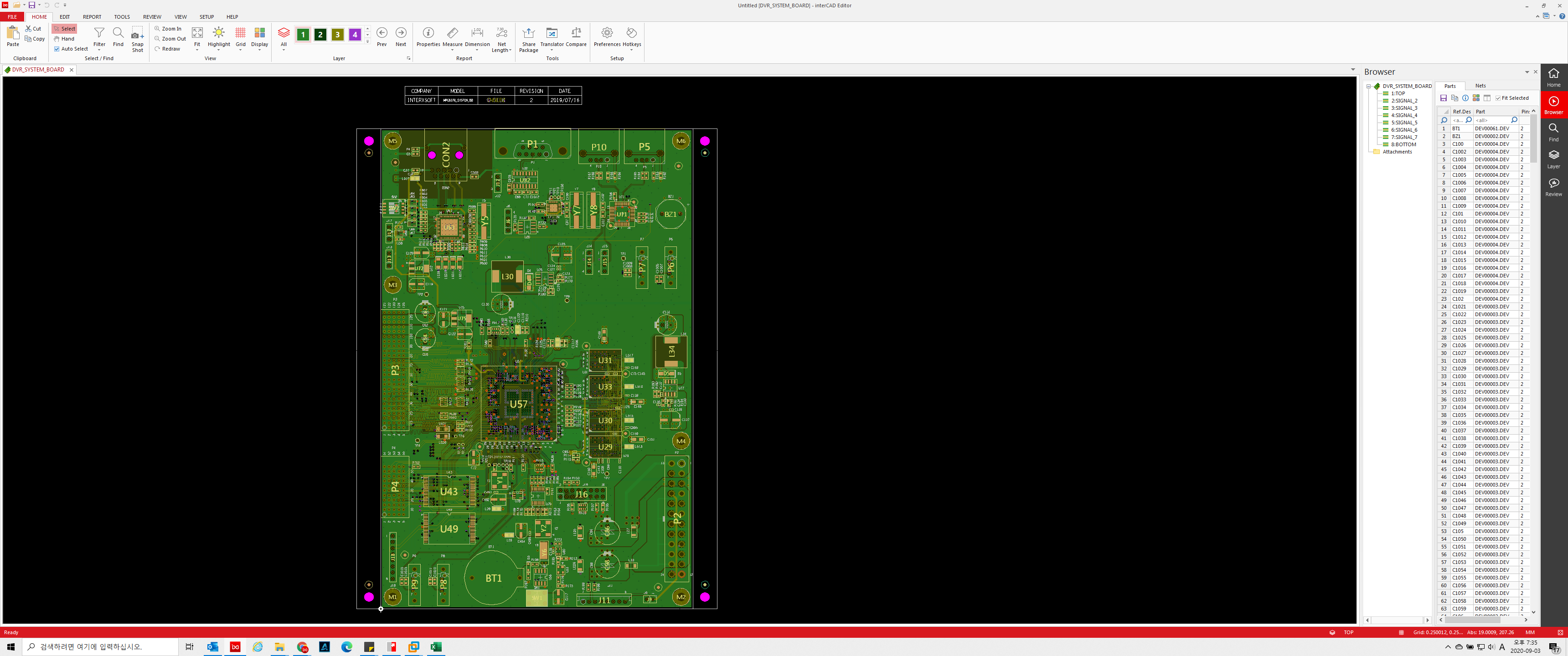

PCB Viewer : interCAD® Editor

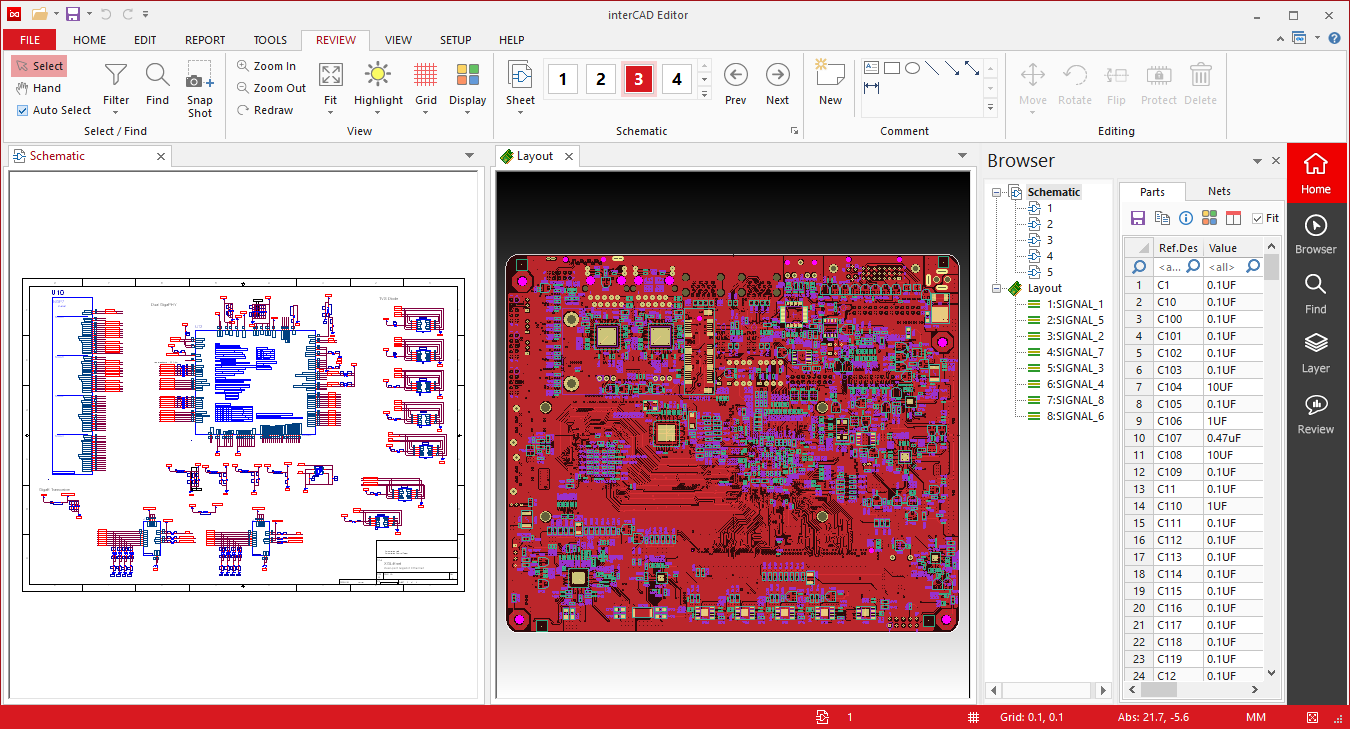

It is a viewer that can open design data (circuit diagram, PCB, gerber) of various ECAD tools. It is a software that can generate installation-free executable files for distribution that includes viewers and design data, and provides data conversion functions.
※ Schematic Viewer The supported data types are: EDIF Schematic, OrCAD Capture, PADS Designer, Xpedition xDX Desinger, Zuken Schematic
※ PCB Viewer The supported data types are: Allegro, Board Station, PADS, Xpedition, ODB++, Gerber, Zuken
※ PCB Translator Conversion data
input format : Allegro, Board Station, PADS, Xpedition Conversion data
output format : Allegro, Board Station, PADS
- interCAD® Edior Youtube Playlist :
https://www.youtube.com/playlist?list=PLYg5cPDE9CA6gwP6BTXWjwnCVANQ2pcyp
interCAD Editor
※ interCAD® Editor website http://www.interxsoft.com/product.html?co_id=editor ※ interCAD® Editor It is a viewer that can open design data (circuit diagram, ...
www.youtube.com
- interxsoft Homepage :
https://www.interxsoft.com/
